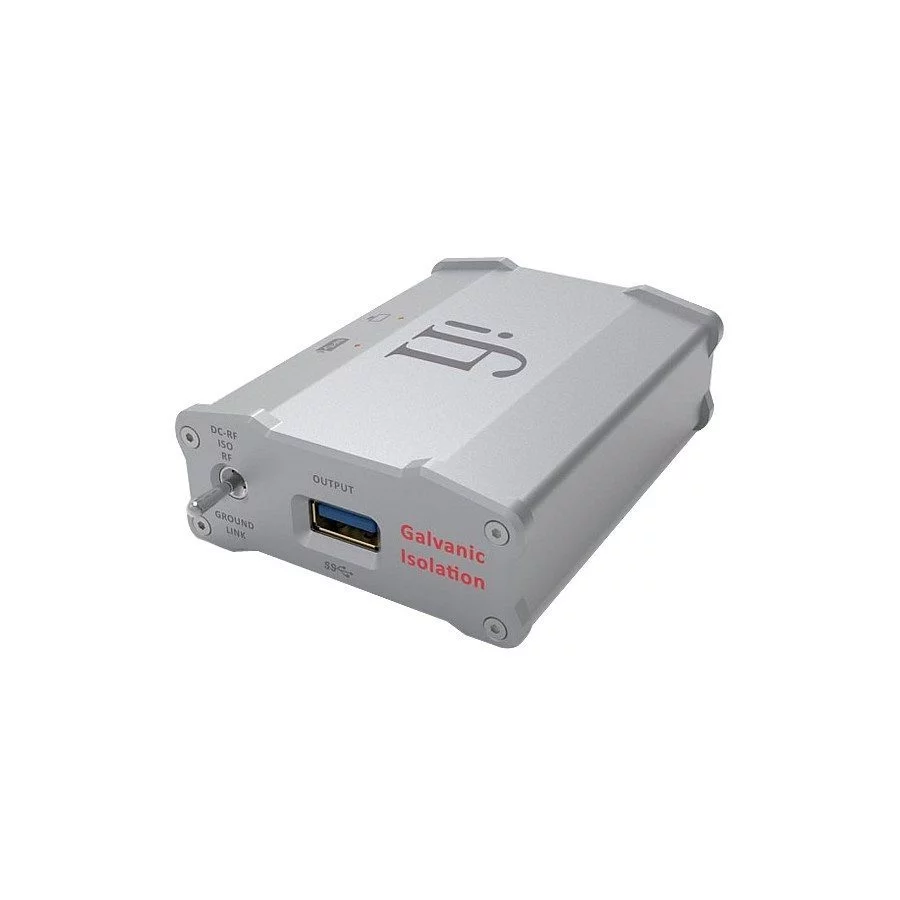

iFi Nano iGalvanic 3.0

399,00

iFi Nano iGalvanic 3.0. Galvanic isolation. The iFi Nano iGalvanic 3.0 is a ground-up design with full-galvanic isolation on USB3.0 and USB2.0. It is a through and through ultra audiophile-grade galvanic isolation device aimed purely at computer audiophile systems and nothing else.

Out of stock

Pago sin comisiones / Financiación

*Opciones de financiación al finalizar la compra



Description

Galvanic isolation is a design technique that separates electrical circuits completely to eliminate stray or noise currents. Signals can pass between galvanically isolated circuits, but stray or noise currents, such as differences in ground potential or currents induced in AC power, are blocked. It is these stray currents that create noise in the system. Although iFi audio and others have created devices that kill noise, achieving galvanic isolation on USB3.0 is the ‘holy grail’ of computer audio. It has been sought by many but never actually achieved. Until now! The iFi Nano iGalvanic 3.0 is the ultimate one-stop USB enhancement solution for every computer audiophile:



1. Audiophile-grade galvanic isolation.
2. REclock2/REgenerate2/REbalance2.
3. Clean USB ultra power supply*.
*Measured noise floor is 0.5uV(0.0000005V). bettered only by the iFi’s own micro iUSB3.0(0.1uV).



Double REclock2/REgenerate2/REbalance2®
As USB is a bi-directional protocol, iFi Nano iGalvanic 3.0 provides unique double REgenerate/REclock/Rebalance before AND after galvanic isolation, this ensures perfection transmission on both upstream and downstream.



5.0Gbps USB3.0 Superspeed
No need to sacrifice USB transfer speed to enjoy the benefit of full galvanic isolation. With separate transmitting AND receiving lines, the USB3.0 is vast superior to USB2.0 at handling high data volumes.



Stealth Converter
Built-in super low noise-floor (0.5uV) audiophile grade USB power with Panasonic OS-CONs capacitors cable of beefy 900mA supply. For the best performance, this Stealth Converter is completely galvanic isolated too.



Ground Link
All computer audio systems are different. This is why the iFi Nano iGalvanic 3.0 is dedicated for computer audio use and incorporates Ground Link (ISO, RF, DC-RF). A flick of the switch optimses isolation in systems where there is no, one or multiple Grounds(Earths) which cause hum and/or buzz.



Zero Delay®
A highly advanced isolation technology, without any added conversion, processing, timing uncertainties or delays etc.; native, Bit-Perfect with minimal latency.



Features
Breaks ground loops
Avoids noise-coupling in applications that require hi-speed USB transfers
Dramatically improves sonic performance
Can be dialed into ANY computer audio system

Additional information

Weight 0.128 kg
Dimensions 9.3 × 6.7 × 2.8 cm

Specifications

Output Voltage: 5V ± 3% @ 500mA load

Output Voltage: 5V ± 3% @ 500mA load

Output Current: Up to 900mA (on USB3.0 port WITH USB3.0 cable). Up to 500mA (on USB2.0 port)

Output Noise floor: 0.5uV(0.0000005V) @ 500mA load

Ground Connection: ISO, RF, DC-RF
USB Standards:

USB 3.0 Super-speed 5.0Gbps

USB 2.0 Hi-speed 480Mbps

USB 2.0 Full-speed 12Mbps

USB 2.0 Low-speed 1.5Mbps

Connector host-side: USB 3.0

B-TypeConnector device-side: USB 3.0 A-TypeInput Voltage: DC 4.5V to 5.5V USB Bus Power

Power consumption: < 6W (includes powered USB device)

Electrical Safety Standard: BS 7671:2008 ELV

Isolation Device max Voltage: 3000 Vrms Isolation Voltage per UL 1577

Dimensions: 93 (l) x 67 (w) x 28 (h) mm

Weight: 128g (0.28lbs)
